THBIM – Supercharge Your Revit Workflow with 35+ Powerful Add-ins in One Plugin

THBIM

📥 Download Plugin 🎬 How to Install Your TH-BIM Plugin 📺 YouTube Channel

Electrical Cable Addin

Draw Electrical Cable Easily

Project Setup Add-in

used to create all the floor planes, ceiling planes, sheets and assign views into sheets...etc

Express Clash Solver of MEP

Express Clash Solver of MEP Elements Easily

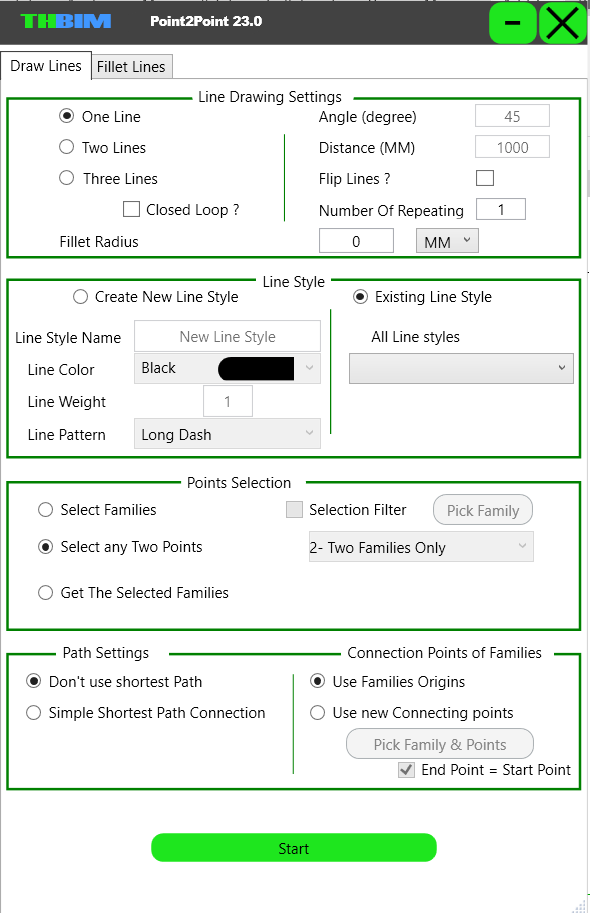

Point2Point

Used in shop drawing to draw lines easily based on your settings

Fillet Lines

Used to fillet lines as the feature in AutoCAD

Connect Junction Box and Back Box

To draw conduits path between Junction Box and Back Box

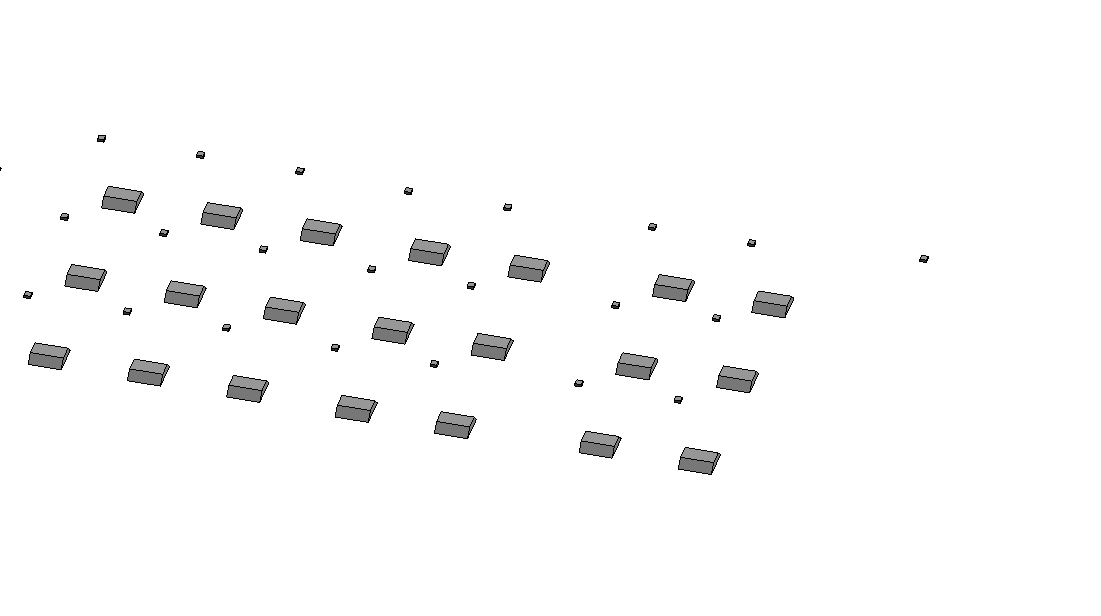

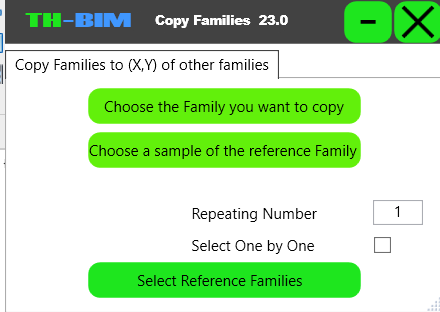

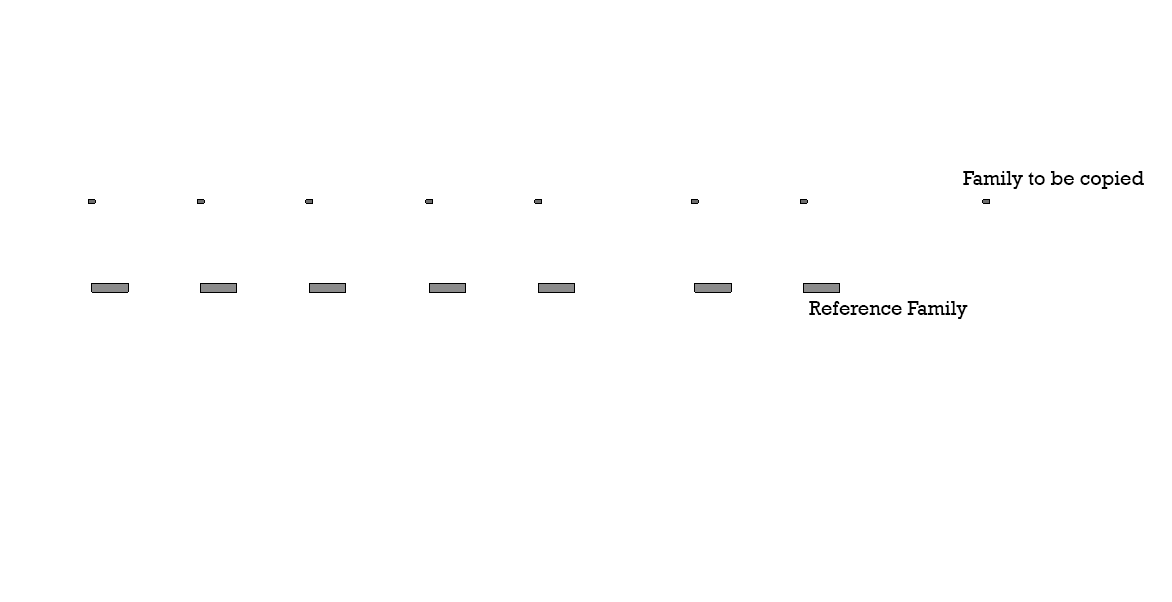

Copy Families

Copy Families to the same X,Y location of another families.

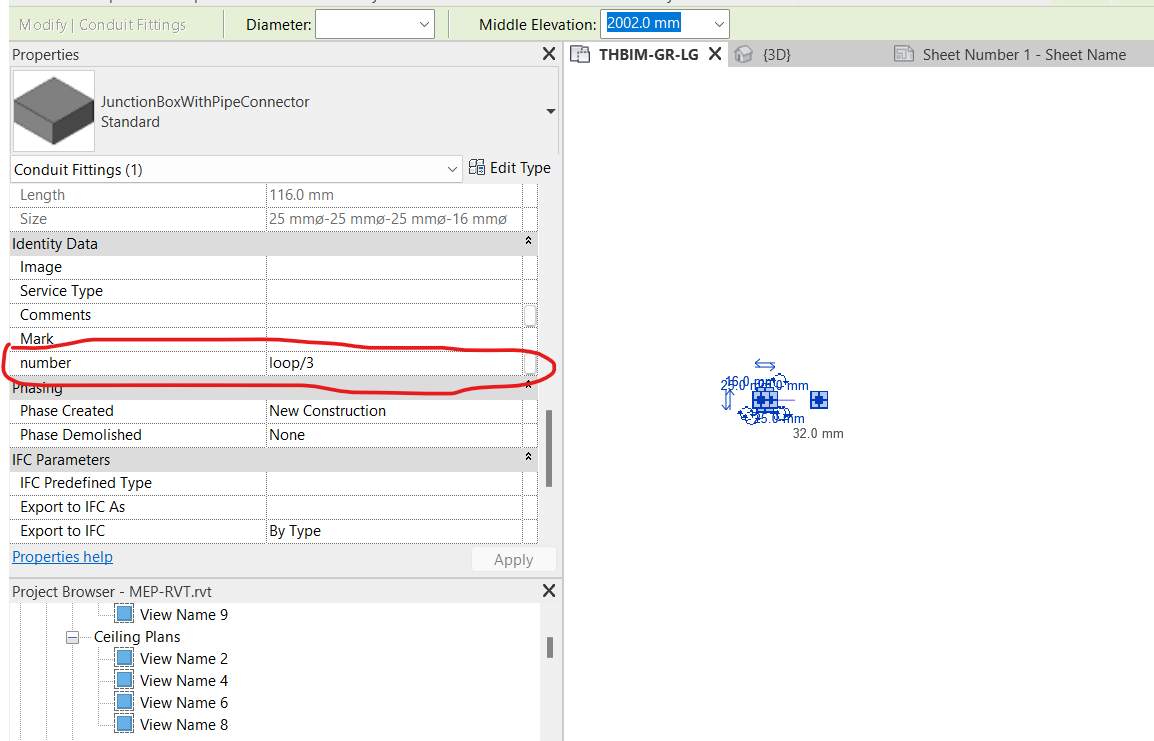

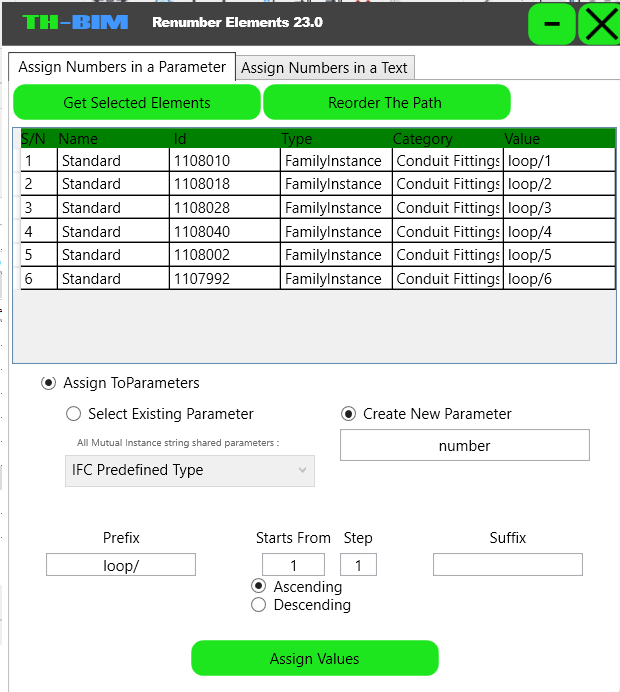

Renumber Elements

create or use existing shared parameter and put its number in serial.

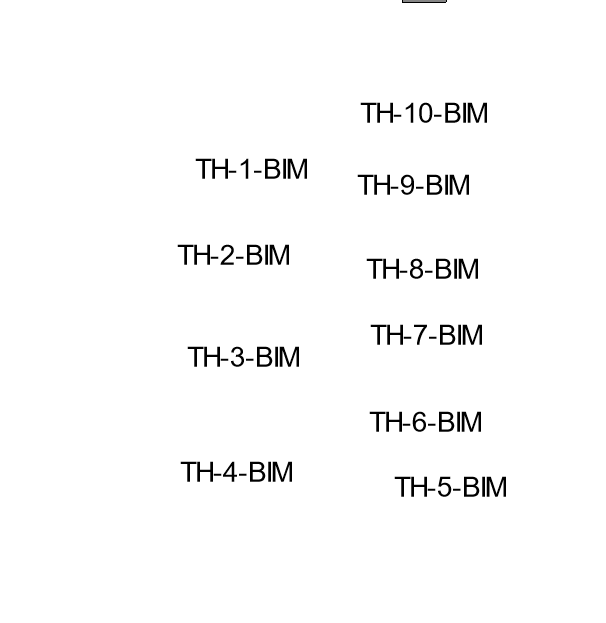

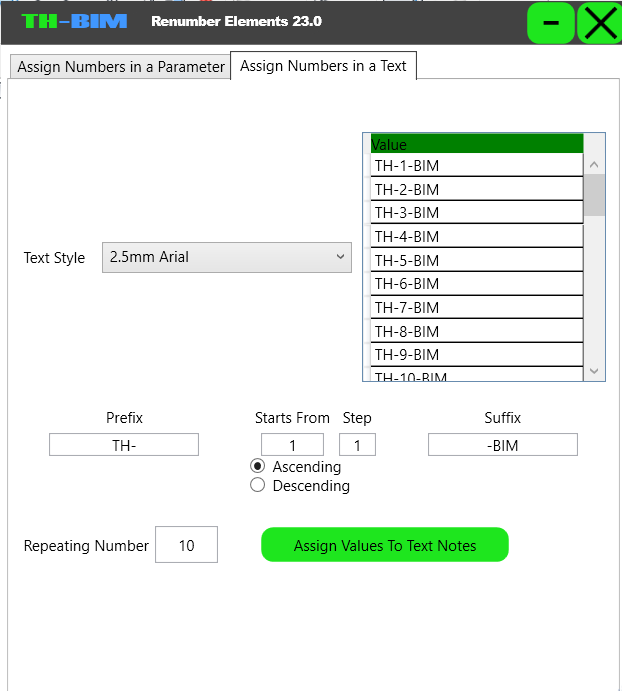

Assign Number in Text Note

used to put series texts

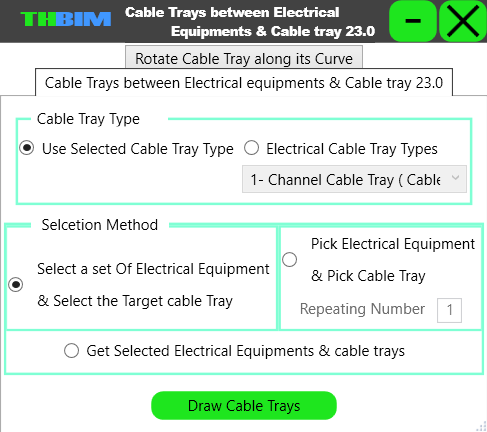

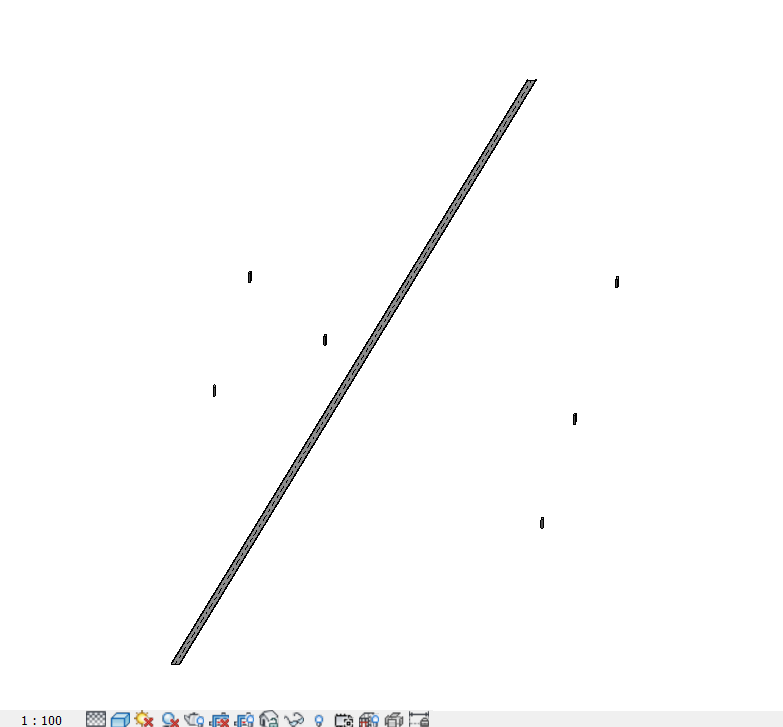

Cable Tray Between Cable Tray and Equipment

Used to draw Cable Tray Between Cable Tray and Equipment

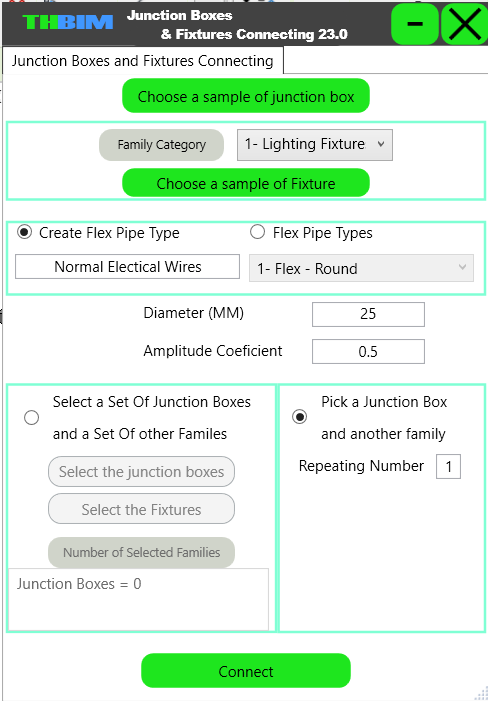

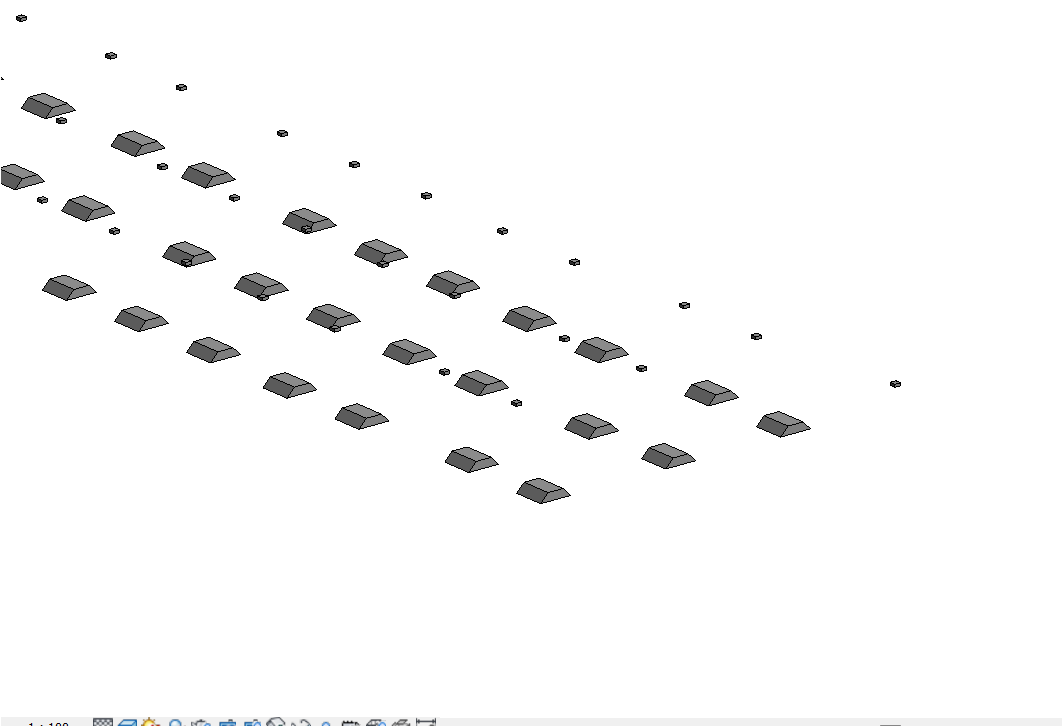

Junction Box & Fixture Connecting

Used to create flexible conduit "Flexible Pipe" between Junction Box and Fixture Connecting

Junction Boxes Connecting

Used to connect junction boxes with the shortest path

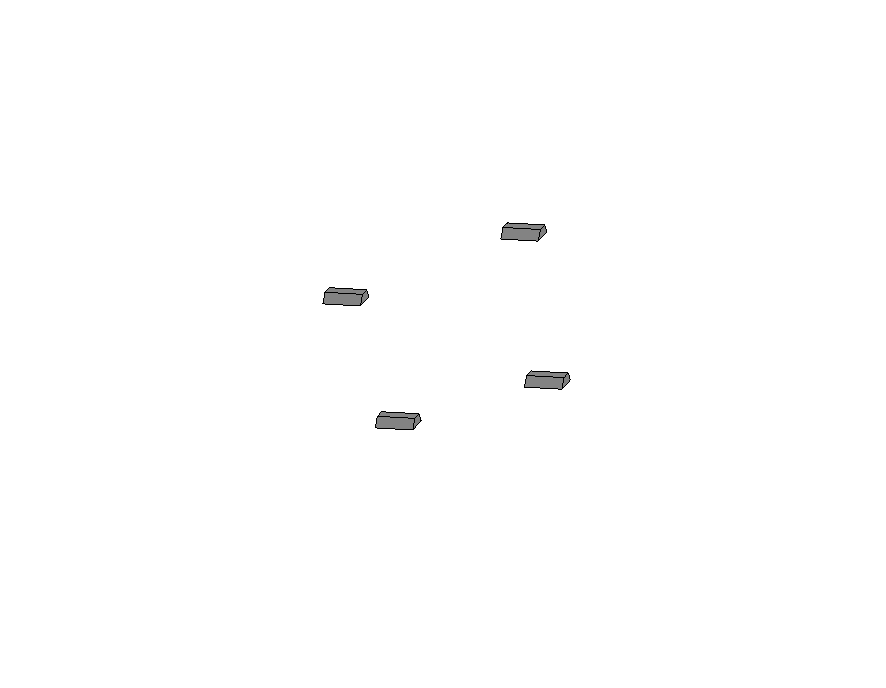

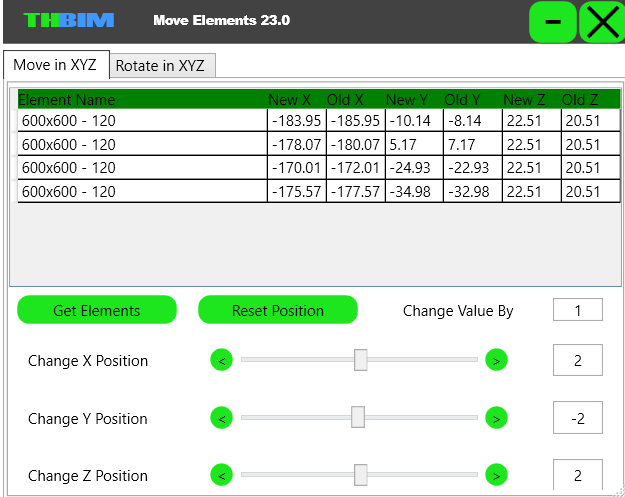

Move Elements

Move Elements in X, Y or Z direction while you are in 3D, without going section or Plane views

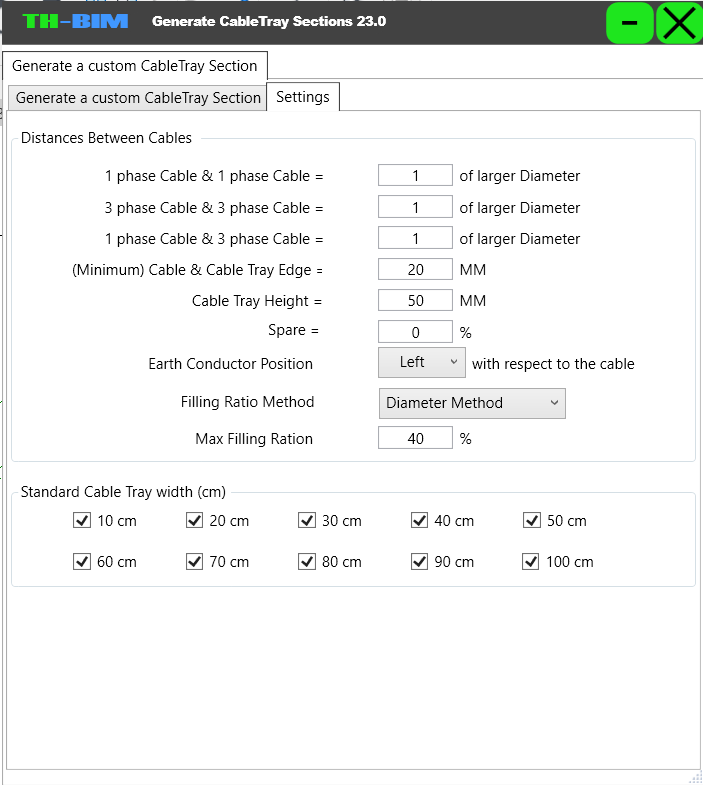

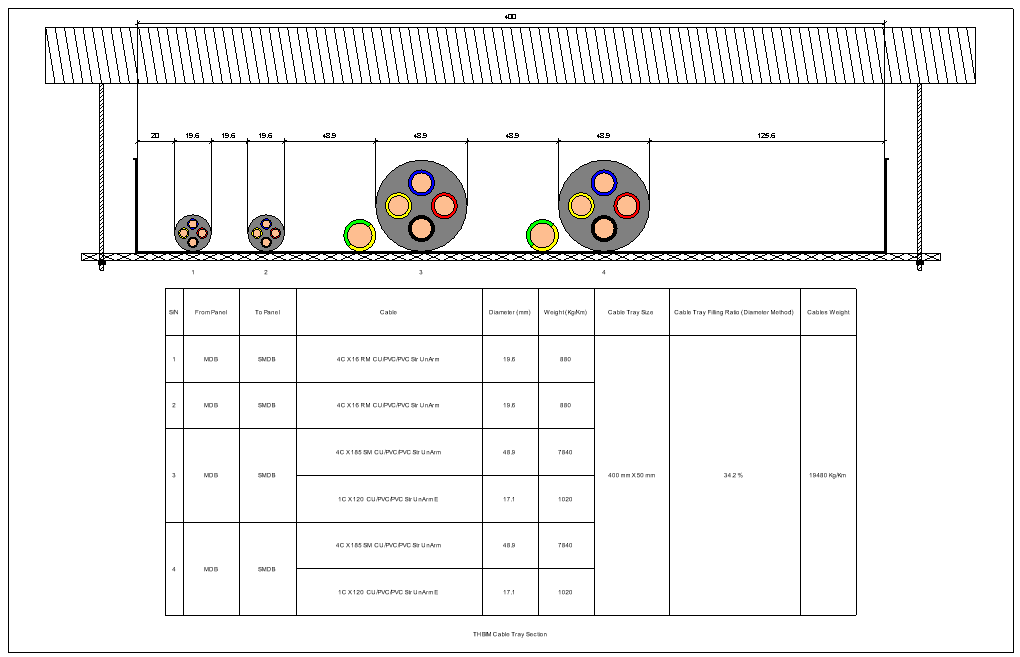

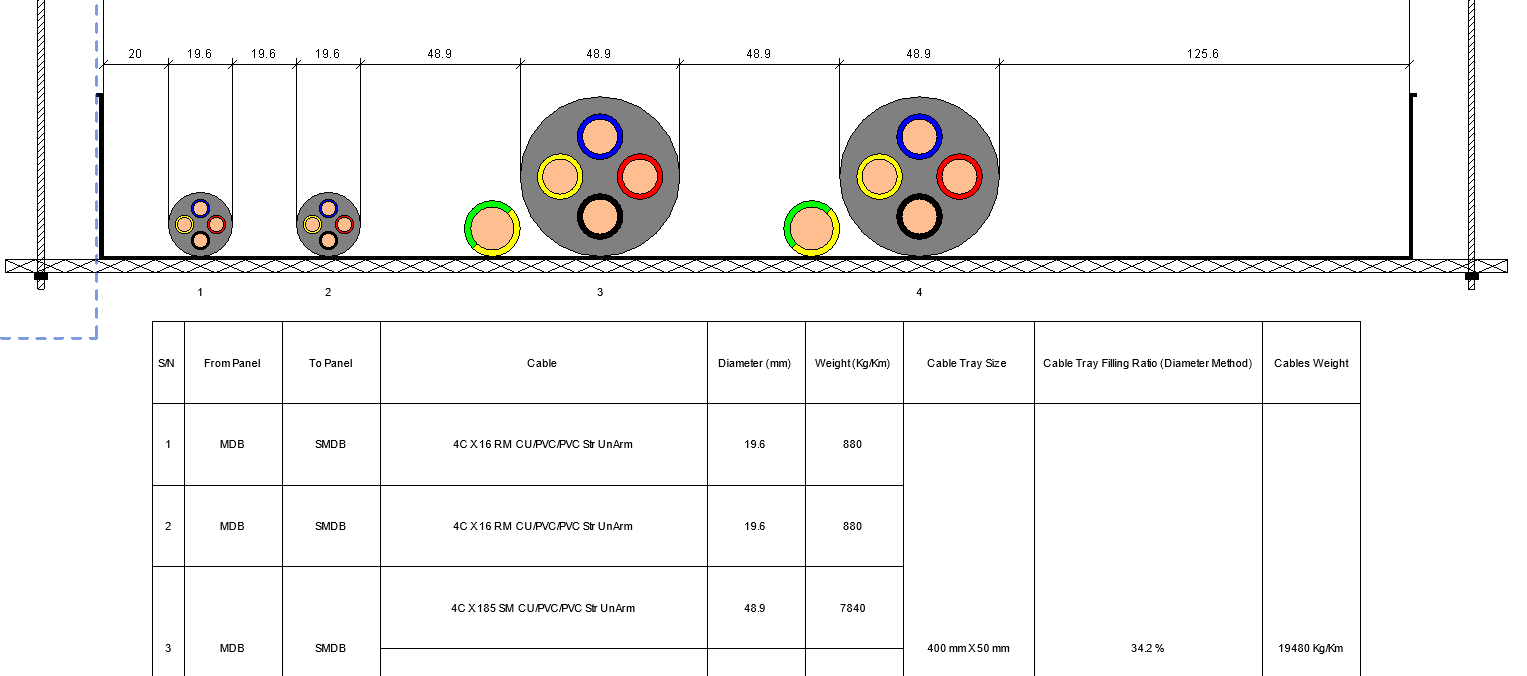

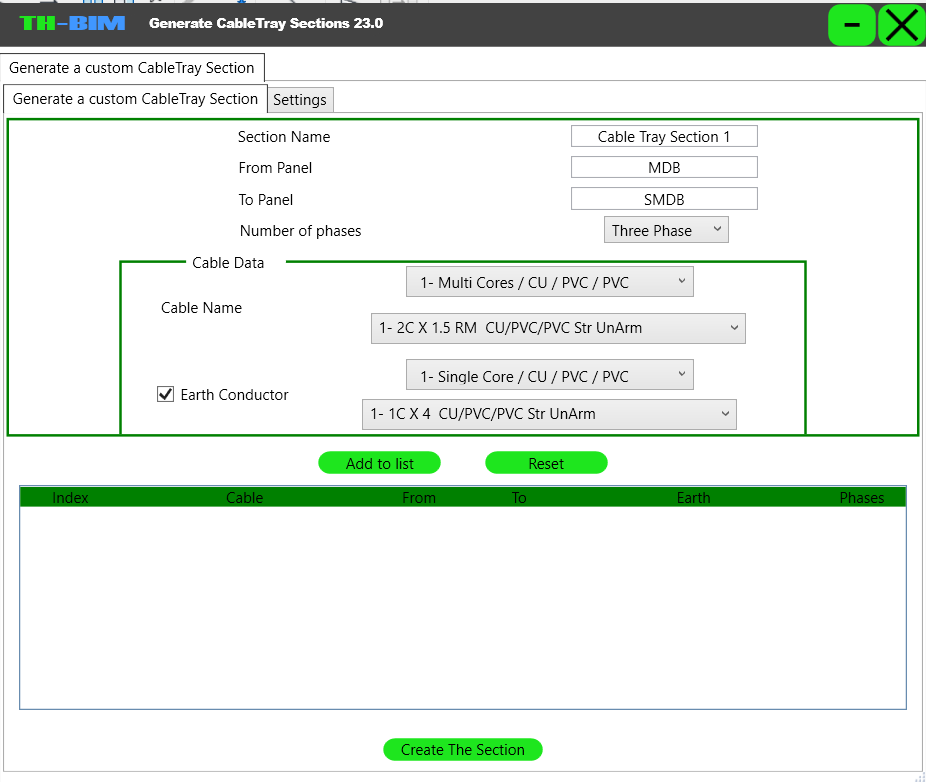

Cable Tray Section Generator

Generate Cable Tray Section into drafting and sheet view based on your settings

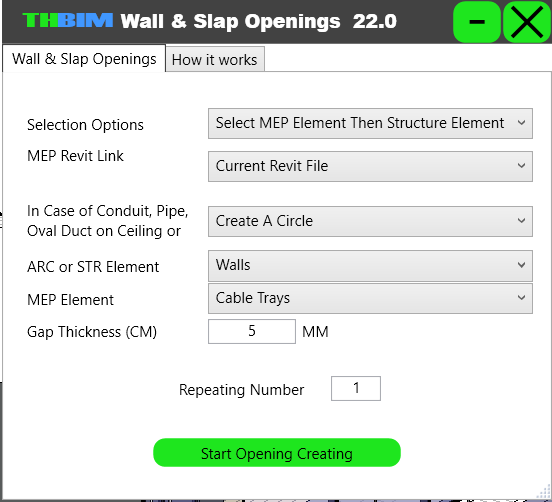

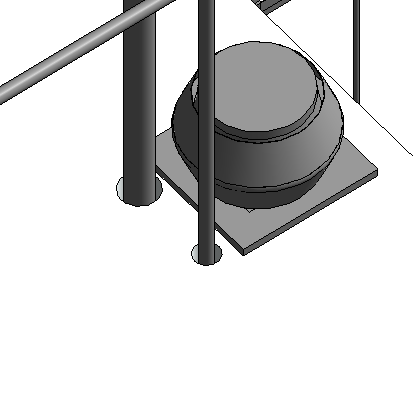

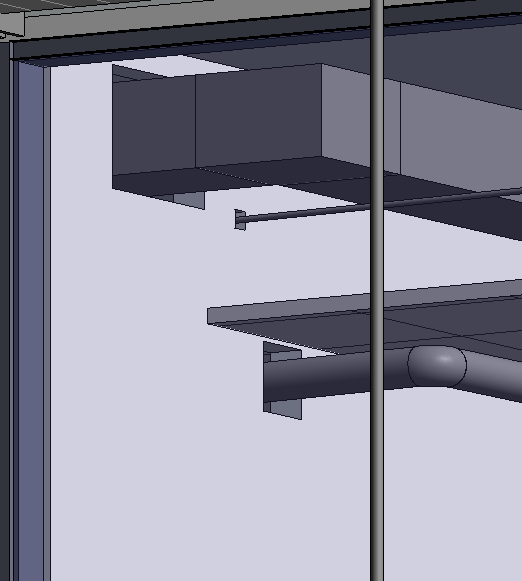

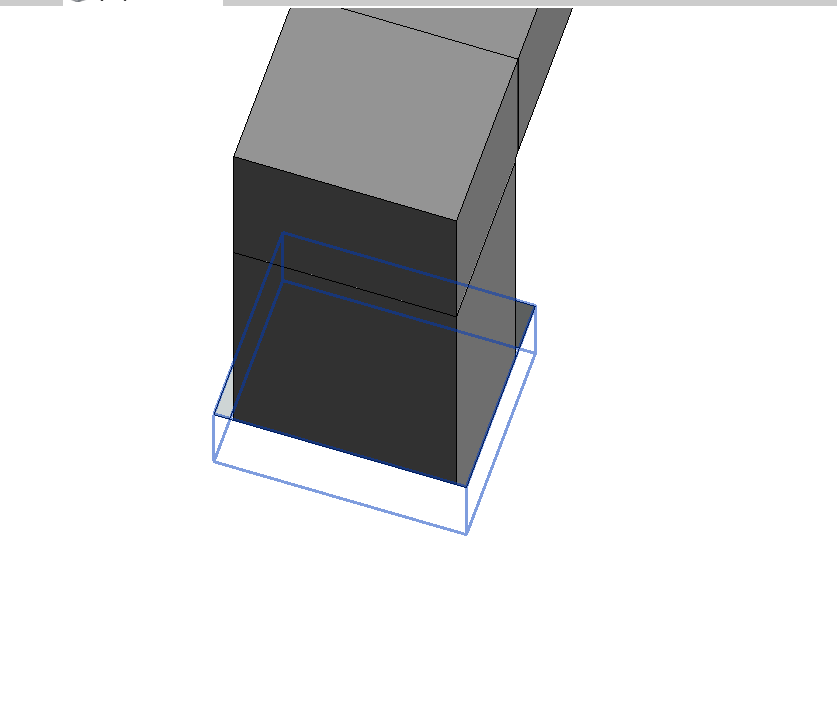

Wall & Slab Opening

Automatically create precise openings in walls and slabs for conduits, pipes, ducts, and cable trays.

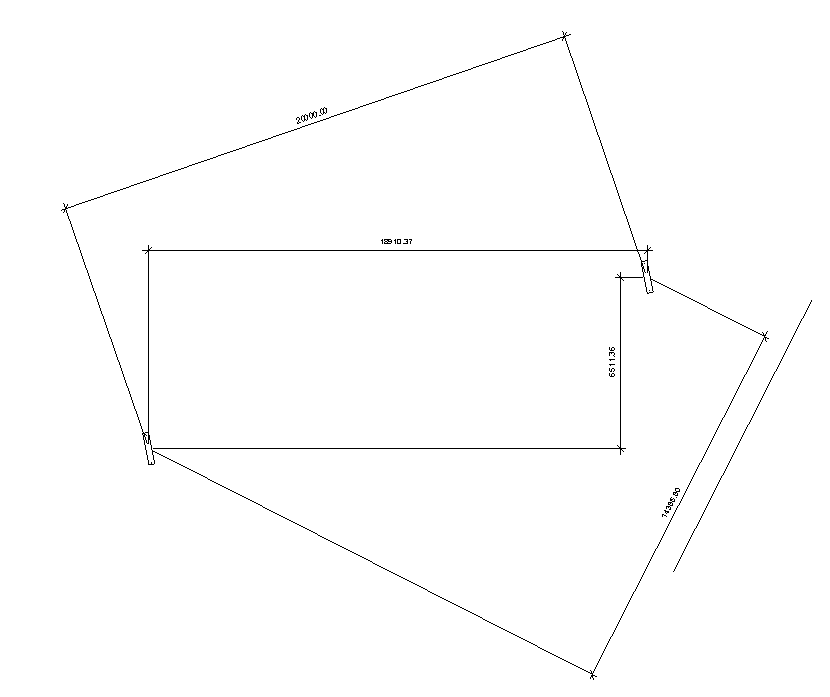

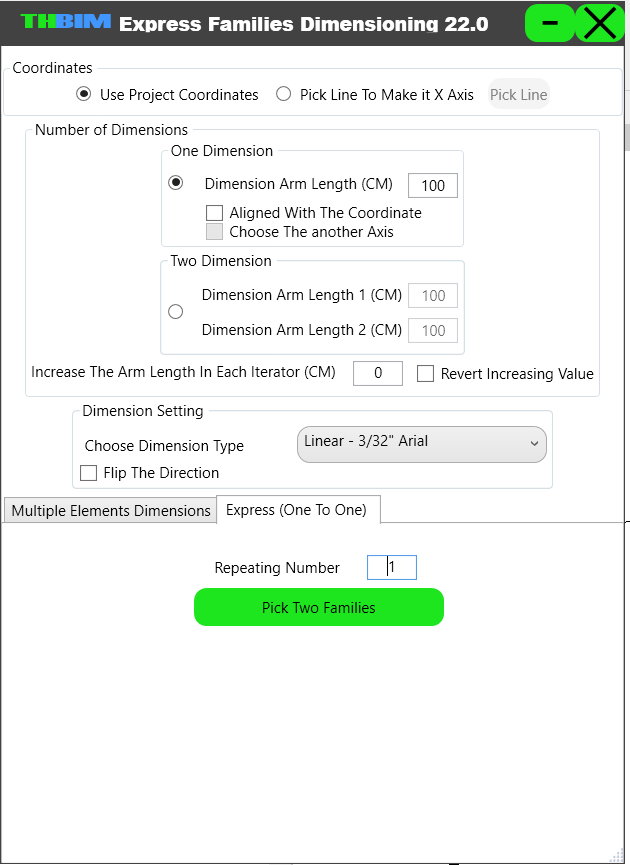

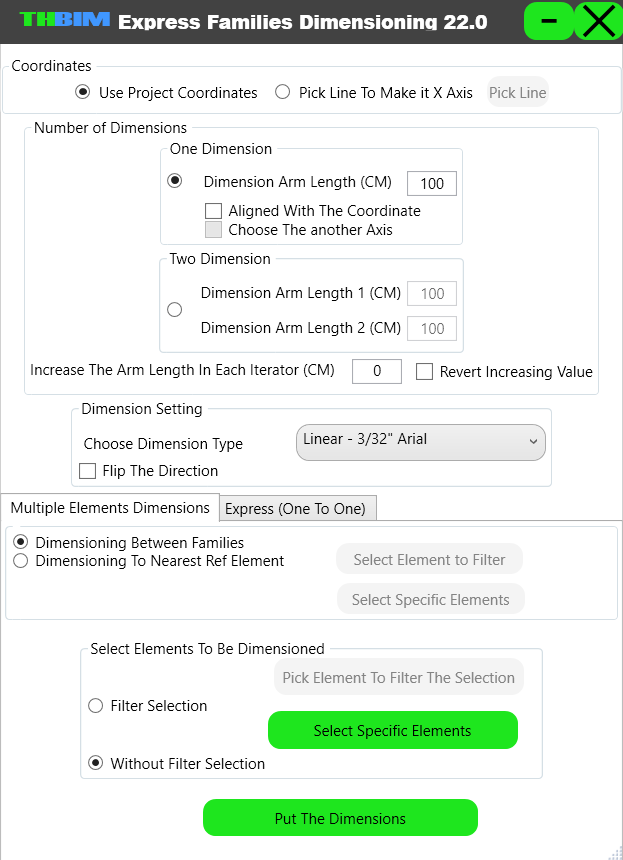

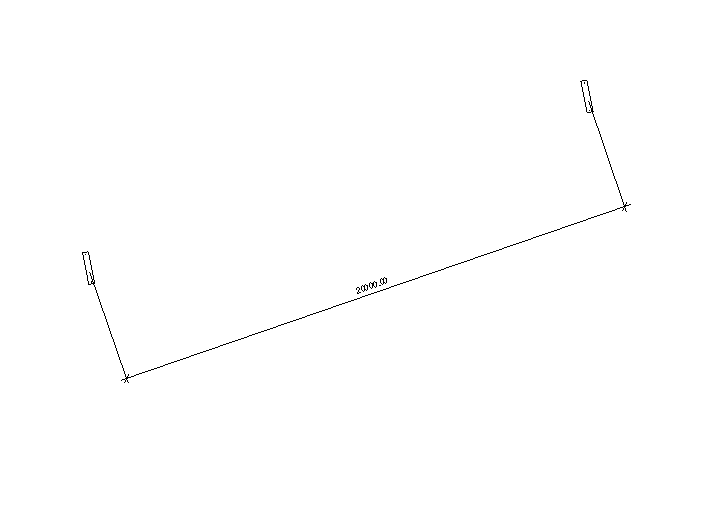

Automatic Dimensioning

Quickly place aligned, angular, and spot dimensions for selected elements with a single click.

🔌 Automatic Cable Routing via Cable Trays

Select the feeding and fed panels — thBIM draws the shortest cable route through trays automatically.

🔁 Convert Conduits to Electrical Cables

Transform existing conduit paths into fully functional electrical cables in seconds.

➕ Add Custom Cable Types

Add your own electrical cable specifications to the thBIM database — tailored to your project.

🛠️ Organize Cables Above Trays

Reposition cables on top of trays to ensure clean, clash-free coordination.

🎯 Edit Cable Bend Radius

Customize cable bend radius for smoother layouts and more accurate routing.

🏷️ Smart Cable Tagging

Tag cables with your custom families — including data like feeding panel, fed panel, and cable name.

📏 Shortest Path Finder Between Panels

Automatically calculate the shortest path between two panels before drawing anything.

What is TH‑BIM Electrical Cables Add‑in?

Add your Cables Data to the existing Database if you need.
Graphically model cables connecting electrical panels or devices in your Revit model with two clicks.
Find the shortest path through the cable trays to connect the two Elec Panels
You can select your path
Easily to tag the cable with all your required data (Cable Name, From, To, etc.).
Automatically extract a comprehensive cable BOQ (lengths, types, counts, etc.).
This tool is ideal if you're working in MEP or construction and want to save time on cable documentation.

Cable Add-in

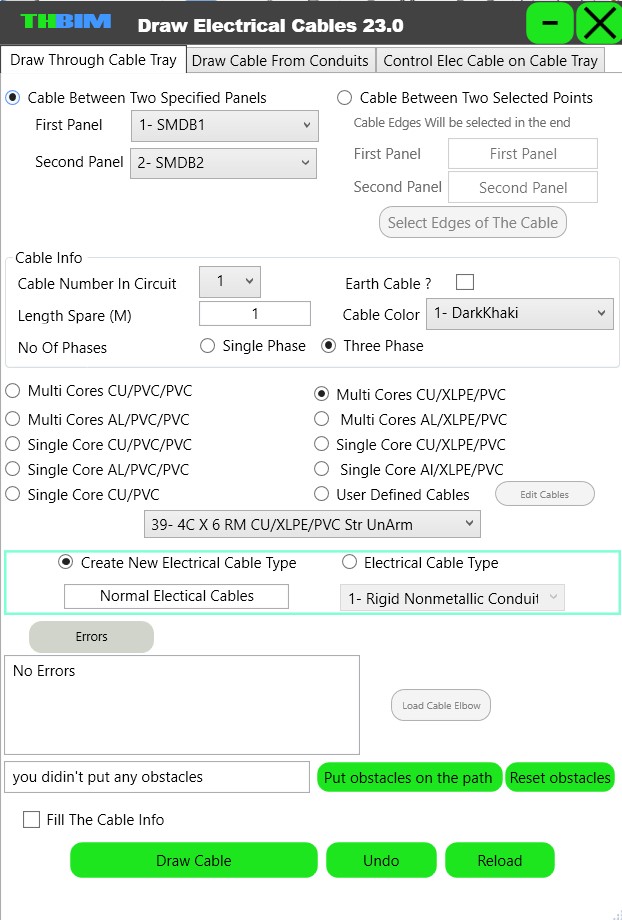

🔌Automatic Cable Routing via Cable Trays in Seconds – Just Two Clicks

Select the feeding and fed panels, and let THBIM calculate and draw the shortest cable path through cable trays — instantly and accurately.

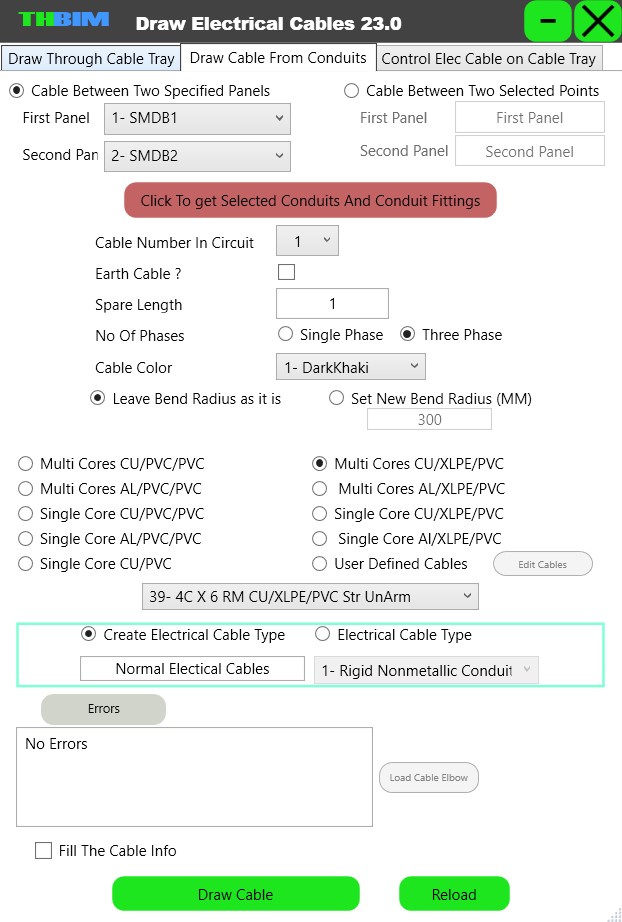

🔁Convert Conduit Paths to Electrical Cables

Already have conduit paths in your model? This tool lets you instantly convert them into electrical cables with proper routing — no redraw needed..

➕Add Custom Electrical Cables to Your Database

Need a specific cable type? Easily add your own custom electrical cables to the thBIM database — tailored to your project's standards.

🛠️Adjust Cable Positions Above Trays

After drawing your cable trays and cables, use this tool to shift and organize electrical cables directly on top of the trays — making coordination and clash avoidance fast and easy.

🎯Adjust Cable Bend Radius Easily

Fine-tune the cable bend radius for smoother routing and better coordination above cable trays — ensuring realistic and clash-free layouts.

🏷️ Smart Cable Tagging with Custom Data

Tag electrical cables using your custom tag families — with automatic inclusion of key data like feeding panel name, fed panel, cable type, and more. thBIM ensures clear, consistent documentation with minimal effort.

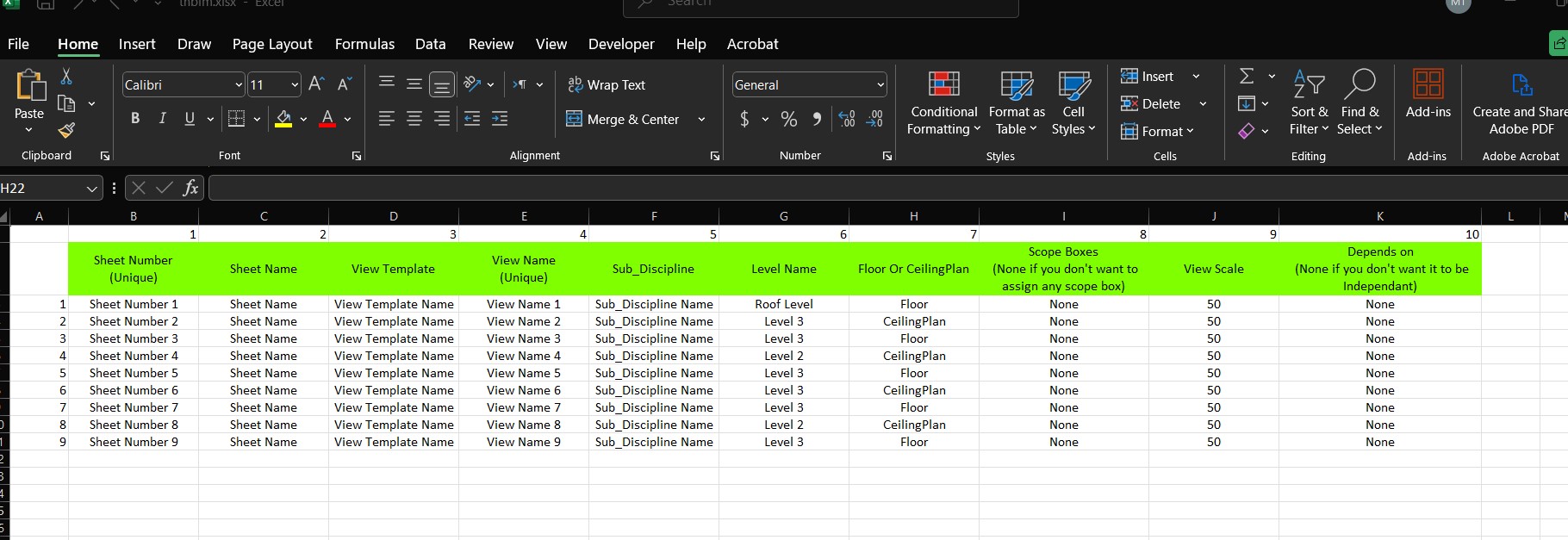

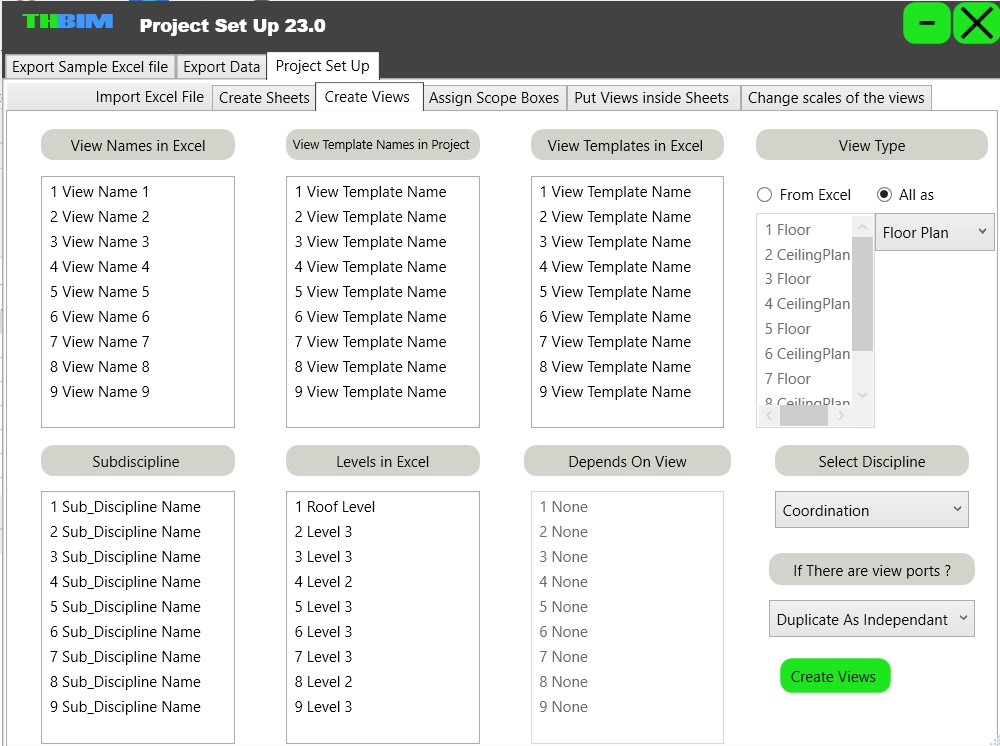

📄 Excel-Based Project Setup

Control your entire setup from an Excel file — including view names, sheet numbers, templates, and more.

📐 Batch Create Floor & Ceiling Plan Views

Create multiple plan and RCP views at once — based on your Excel input — saving hours of manual work.

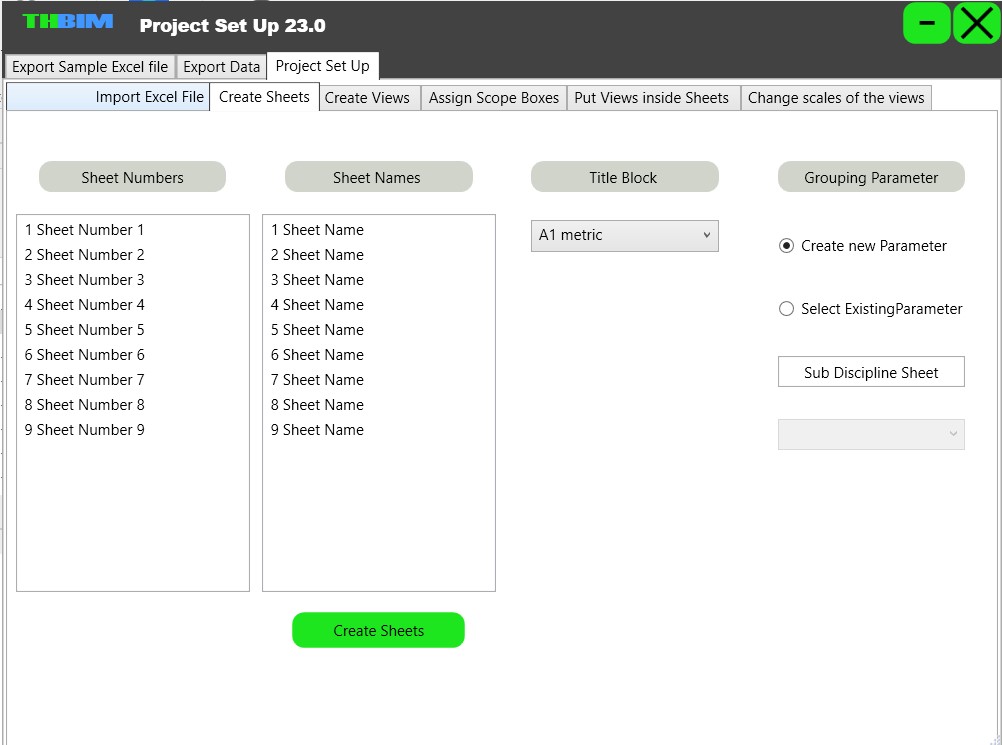

🗂️ Automatic Sheet Creation

Generate sheets directly from Excel — including names, numbers, and title blocks — all in one step.

🖼️ Assign Views to Sheets

Automatically place views on their designated sheets — no manual placement needed.

📏 Set Custom View Scales

Define the desired scale for each view in Excel — and thBIM will apply it automatically.

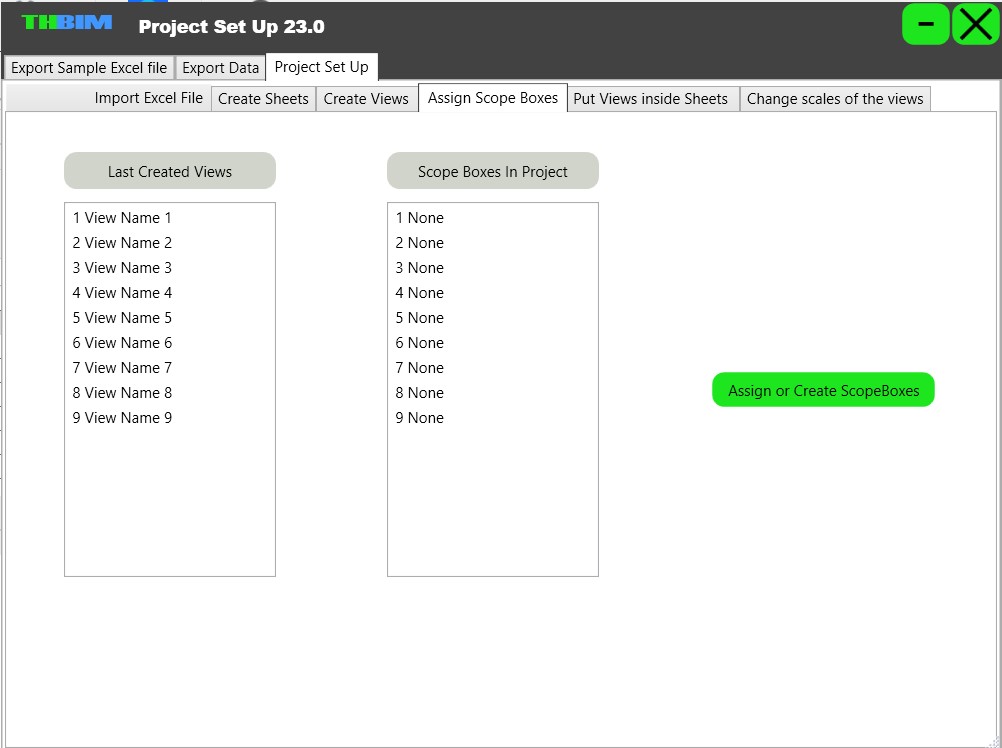

🗺️ Apply Scope Boxes

Assign specific scope boxes to views based on your Excel setup — ensuring correct crop regions and consistency.

🎨 Use View Templates

Automatically assign view templates from Excel to ensure visual consistency across all generated views.

What is TH‑BIM Project Setup Add‑in?

Use Excel to define and manage views, sheets, scope boxes, templates, and scales.
Create multiple floor plans and ceiling plans in one step based on Excel input.
Automatically generate sheets with names, numbers, and title blocks.
Assign views to sheets and control their scale and placement automatically.
Apply specific scope boxes to each view for clear, consistent crop regions.
Assign view templates to ensure visual and standardization consistency.
Export all available project data (levels, templates, scope boxes, etc.) into Excel to help you prepare input files accurately.
This tool is perfect for speeding up early project setup while maintaining project standards.

Project Setup Add-in (Video)

🧩Excel-Based Project Setup – Simple & Scalable

Control all project setup data from an Excel file — including view names, sheet numbers, templates, and scope boxes.

📐Batch Create Floor and Ceiling Plan Views

Automatically generate all required plan and RCP views with proper naming and organization using Excel input.

🗂️Automatic Sheet Creation

Create multiple sheets with titles and numbers — all pulled from your Excel configuration file.

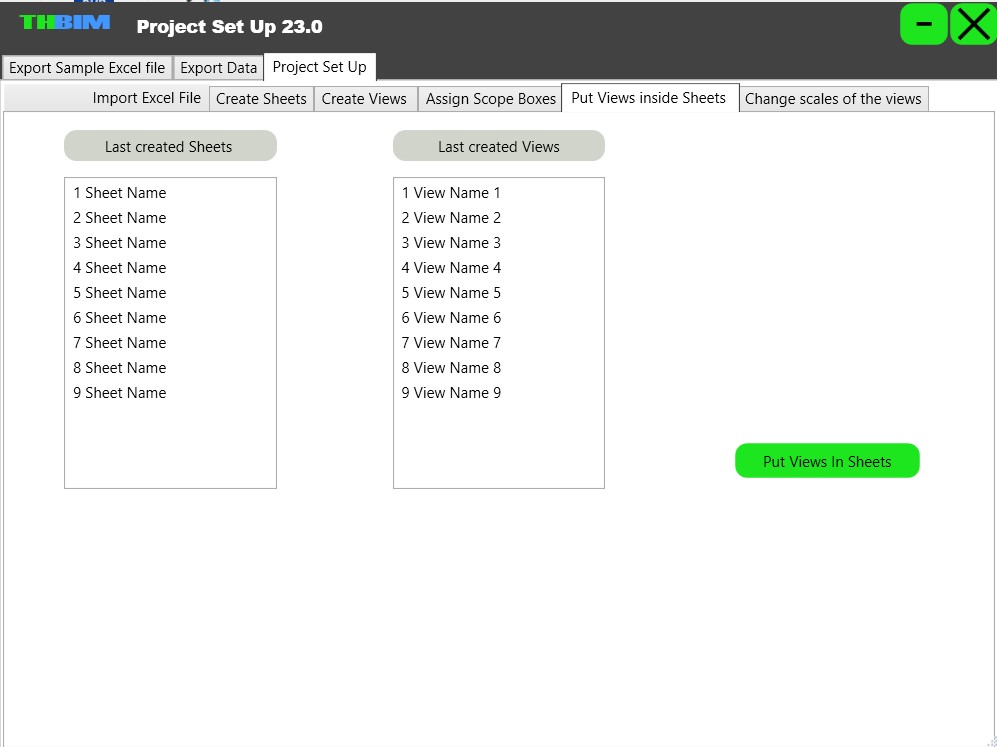

🖼️Assign Views to Sheets Automatically

Place views on the correct sheets and positions without manual effort — saving time and ensuring consistency.

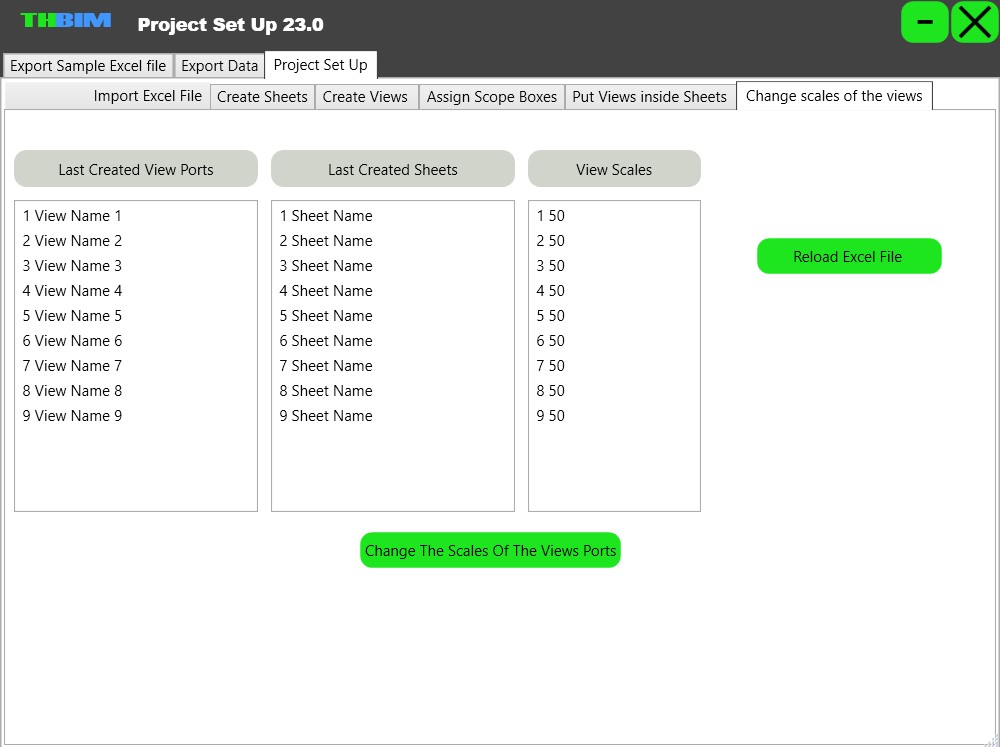

📏Set View Scales Per View

Define view scales in Excel and have them automatically applied to each view as it’s created.

🗺️Assign Scope Boxes to Views

Apply scope boxes automatically to each view based on your Excel setup — ensuring accurate crop regions.

🎨Apply View Templates Automatically

Assign predefined view templates to every view for consistent graphics and project standards.

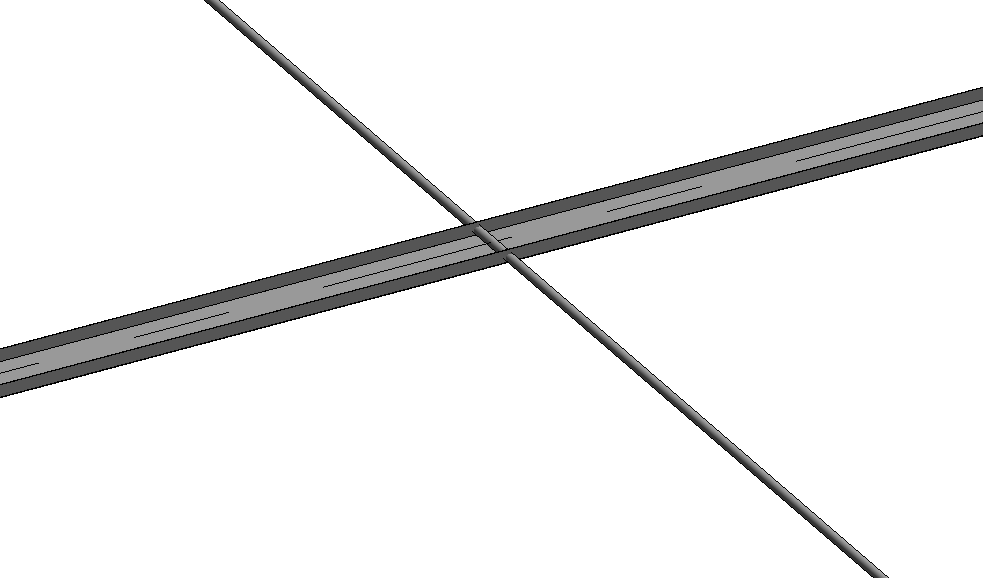

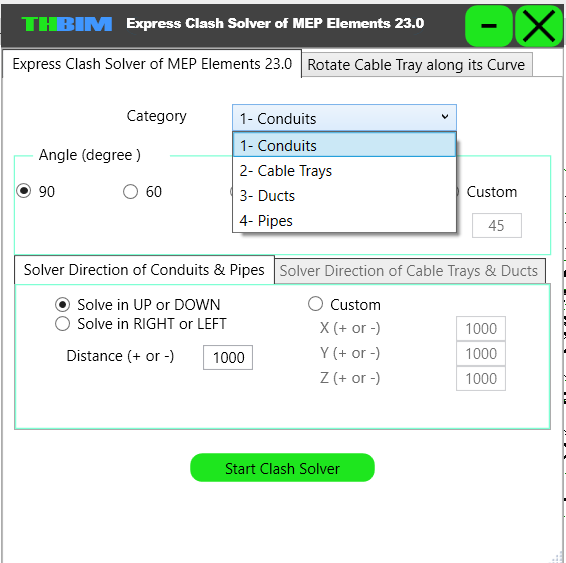

🚧 Express Clash Solving for MEP Elements

Solve clashes in ducts, pipes, cable trays, and conduits with just one click — no section view needed.

➡️ Move Elements in Any Direction

Select the clashing element, then move it up, down, left, or right to resolve the conflict instantly.

⚡ Instant Productivity Boost

Skip the manual editing — fix multiple clashes without opening section views or re-routing geometry.

📏 Maintain Fittings and Alignments

Elements keep their original size, slope, and fittings when shifted, ensuring modeling accuracy.

🔄 Rotate Cable Trays with Precision

Easily rotate cable trays relative to their original direction — perfect for tight spaces or coordinated routing.

What is TH‑BIM Express Clash Solver of MEP?

Solve clashes for ducts, pipes, cable trays, and conduits with just one click.
Select the clashing element and move it in the direction you want: up, down, left, or right.
No need to open section views or redraw geometry.
Maintain the element’s size, slope, and fittings during movement.
Ideal for coordination meetings, fast fixes, and reducing modeling time.
Boosts your productivity by eliminating repetitive, manual clash resolution steps.
Rotate cable trays with respect to their original direction for quick directional adjustments.

Express Clash Solver Video

👆Select the Clashing Element

Pick the MEP element that is in conflict — no section or manual editing needed.

↔️Choose Your Move Direction

Move the element up, down, left, or right — directly in 3D without re-routing or sketching.

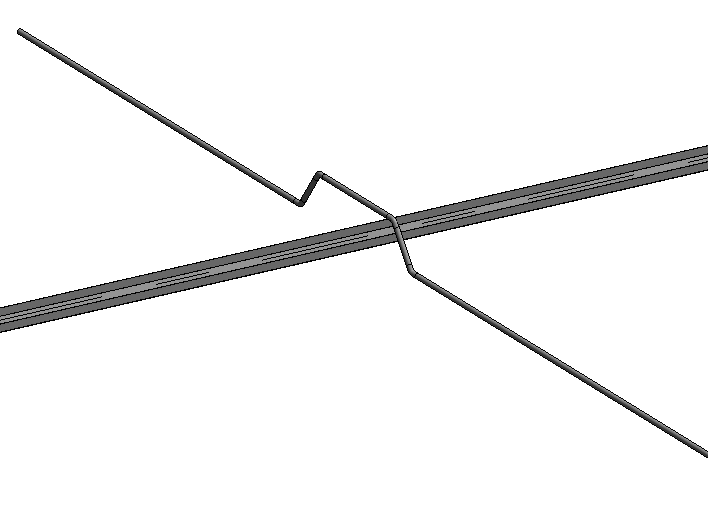

⚡Instant Clash Resolution

Fix the clash instantly with accurate movement that keeps fittings and angles intact.

⚡Instant Clash Resolution

Fix the clash instantly with accurate movement that keeps fittings and angles intact.

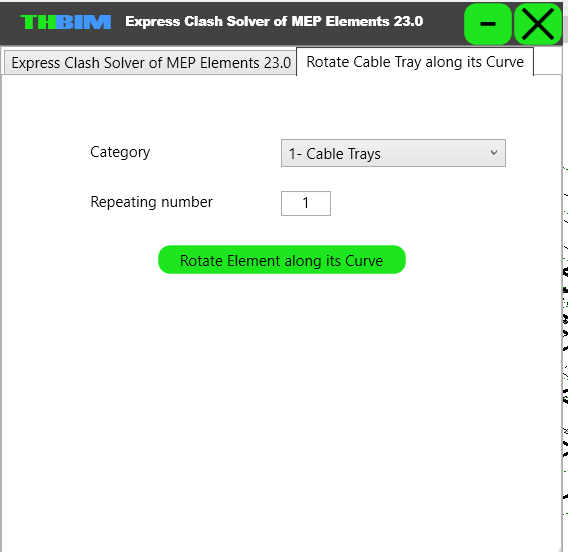

🔄 Rotate Cable Trays with Precision

Easily rotate cable trays relative to their original direction — perfect for tight spaces or coordinated routing.

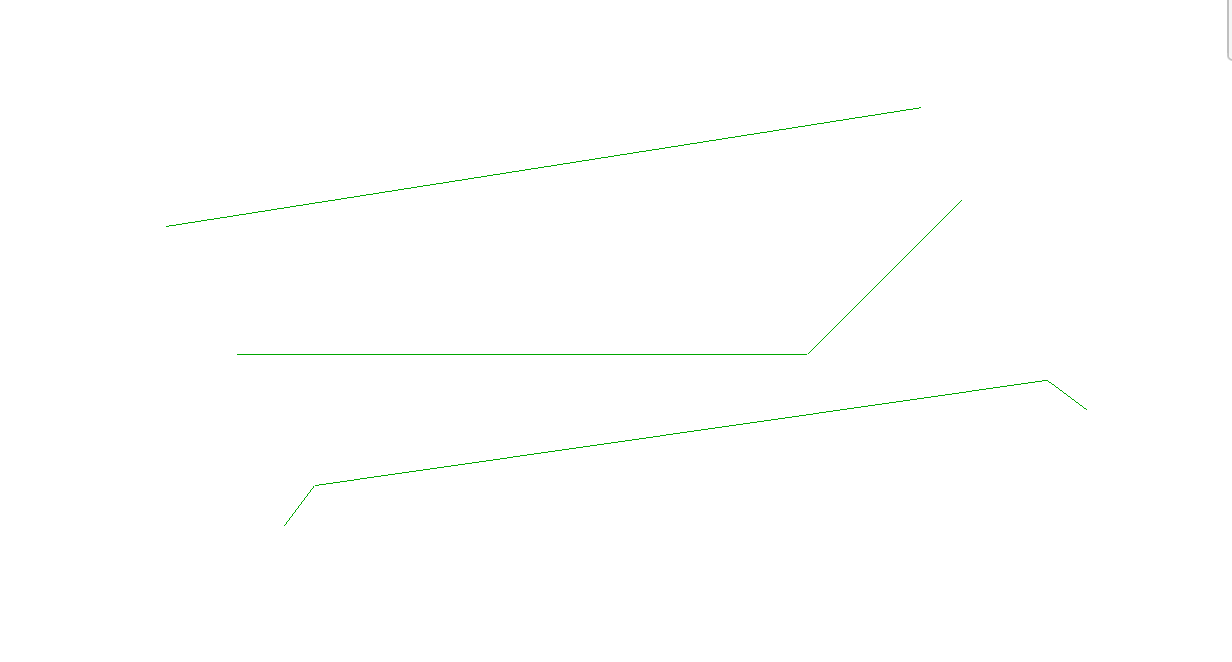

📍 Draw Lines Between Any Two Families or Points

Select two points or two families — thBIM will draw lines between them based on your selected mode.

➕ Choose One, Two, or Three Lines

Flexibly choose how many lines to draw (1, 2, or 3) depending on your shop drawing standards.

👥 Multiple Families Selection

Select multiple families and let thBIM draw connecting lines between them — automatically.

🛠️ Perfect for Shop Drawings

Eliminate tedious line drawing — instantly generate layout lines for cable trays, pipes, or ducts.

What is TH‑BIM Point2Point Add‑in?

Select two points or families to draw connecting lines automatically.
Choose to draw one, two, or three lines between selected elements.
Select multiple families and generate all connection lines at once.
Ideal for shop drawings, cable tray runs, or routing diagrams.
Fast and accurate line generation — no manual sketching needed.
Huge time-saver for MEP and coordination drawings.

Point2Point Add-in (Video)

📍 Draw Lines Between Two Points or Families

Draw one, two, or three lines automatically between any two selected points or families.

👥 Connect Multiple Families

Select several families and generate shop drawing lines in bulk using the selected line mode.

➕ One, Two, or Three Line Options

Choose the number of lines (1, 2, or 3) to match your layout style or drawing standard.

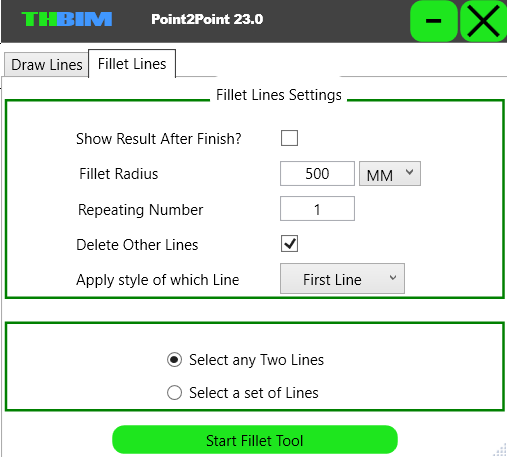

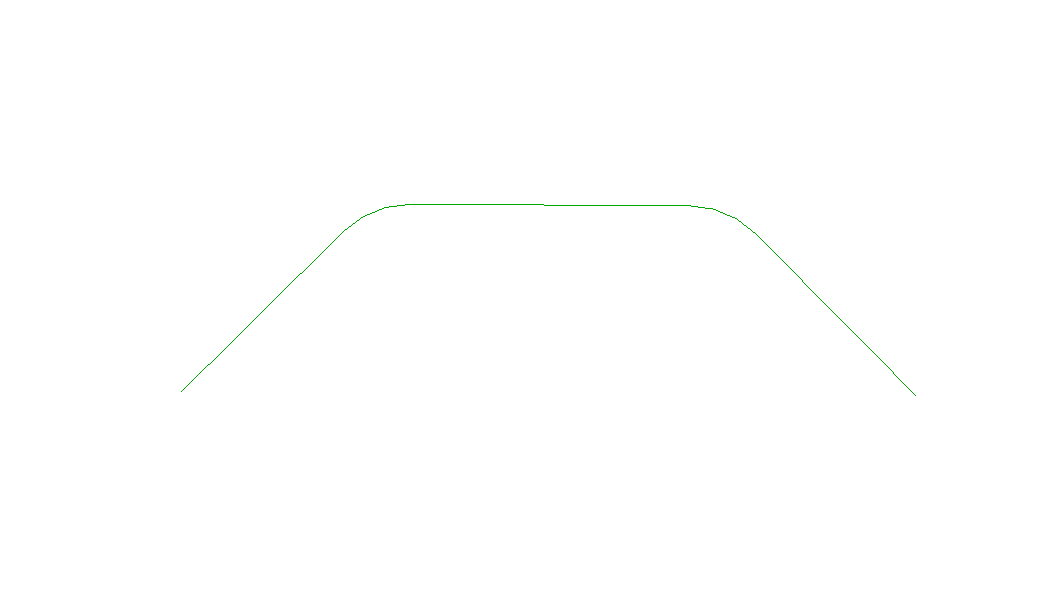

🌀 Fillet Between Two Lines Instantly

Select any two lines and apply a smooth curve between them using your defined bend radius.

📏 User-Defined Bend Radius

Control the curvature by specifying your own bend radius — perfect for shop drawings and realistic detailing.

🔁 Batch Fillet Multiple Lines

Select several lines at once — the add-in will fillet each pair of neighboring lines automatically.

What is TH‑BIM Fillet Lines Add‑in?

Create smooth fillets between two selected lines based on a bend radius you choose.
Select multiple lines to automatically fillet between each pair of neighboring lines.
Ideal for modeling cable runs, piping offsets, and detailing rounded connections.
Works with detail lines, model lines, and symbolic lines.
Improves readability and realism of your shop drawings and 2D documentation.

Fillet Lines Add-in (Video)

🌀 Fillet Between Two Lines

Select two lines and create a curved connection instantly with a defined radius.

🔁 Batch Fillet Between Multiple Lines

Select a group of lines — the add-in will create curves between every neighboring pair automatically.

📏 Set Bend Radius

Enter your preferred radius before drawing to control the curve's sharpness or softness.

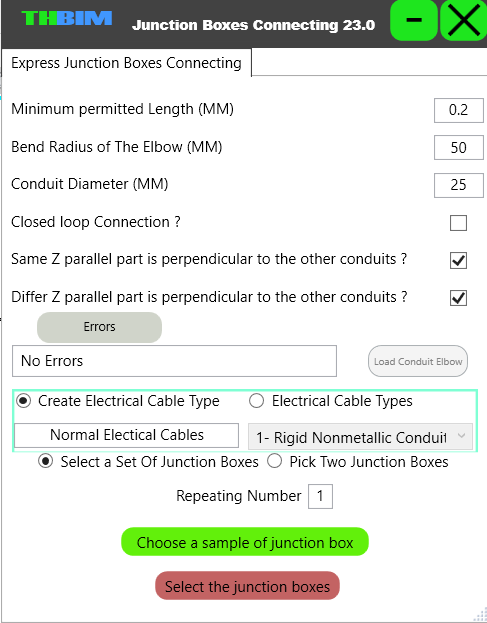

📦 Connect Electrical Junction Boxes Automatically

Quickly draw conduit paths between two junction boxes using smart layout modes.

🔀 Choose Between “L” and “Z” Path Modes

Connect junction boxes using either 2-conduit “L” mode or 3-conduit “Z” mode — your choice.

📏 Automatic Z-Level Handling

Works even when junction boxes are on different levels — THBIM finds the correct vertical route.

🚀 Boost Your LOD 450 Workflow

Saves hours of modeling time required for detailed conduit runs between junction boxes.

What is TH‑BIM Connect Junction Box Add‑in?

Connect two junction boxes automatically with conduits.
Choose between “L” (2 conduits) or “Z” (3 conduits) layout styles.
Handles different Z-locations — no need for level matching.
Respects connector directions and placement for clean geometry.
Saves massive time when modeling LOD 450 junction box connections.
Ideal for electrical modelers working on detailed coordination layouts.

Connect Junction Box Add-in (Video)

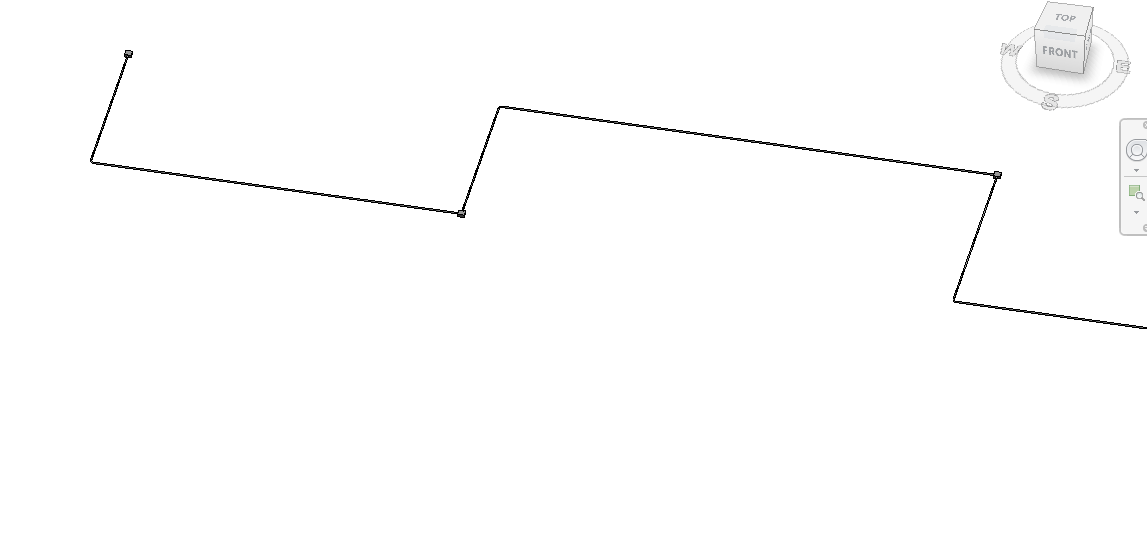

📦 Draw Between Two Junction Boxes

Automatically model conduits between selected electrical junction boxes — clean and connected.

🔀 Choose “L” or “Z” Connection Mode

Draw a clean L-shaped (2 conduits) or Z-shaped (3 conduits) path based on layout preference.

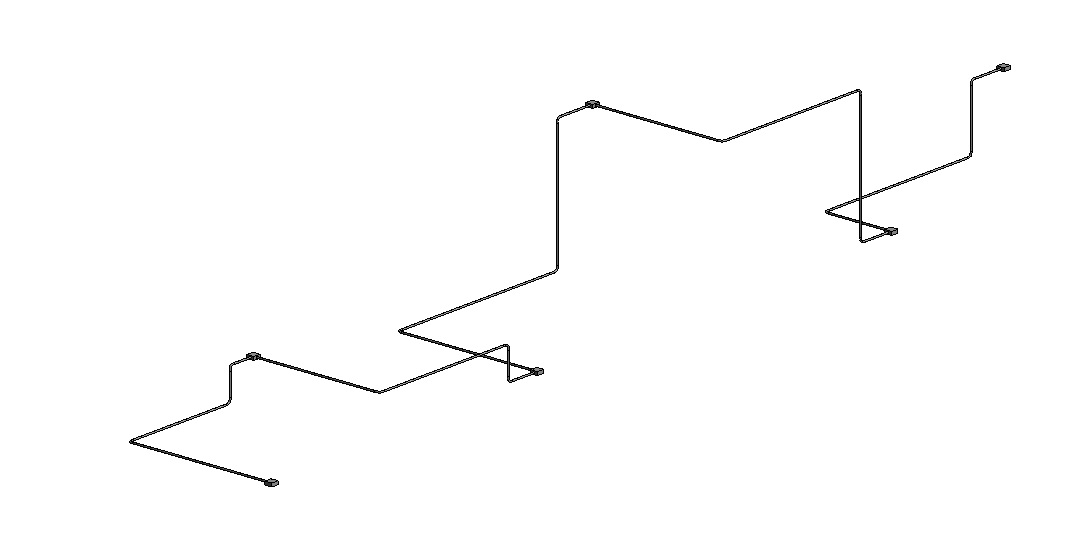

📏 Works Across Different Z-Levels

Whether junction boxes are on different floors or heights — the plugin handles level changes automatically.

🧠 Smart Connector Detection

THBIM automatically detects the conduit connectors on each junction box and finds the best path to connect them.

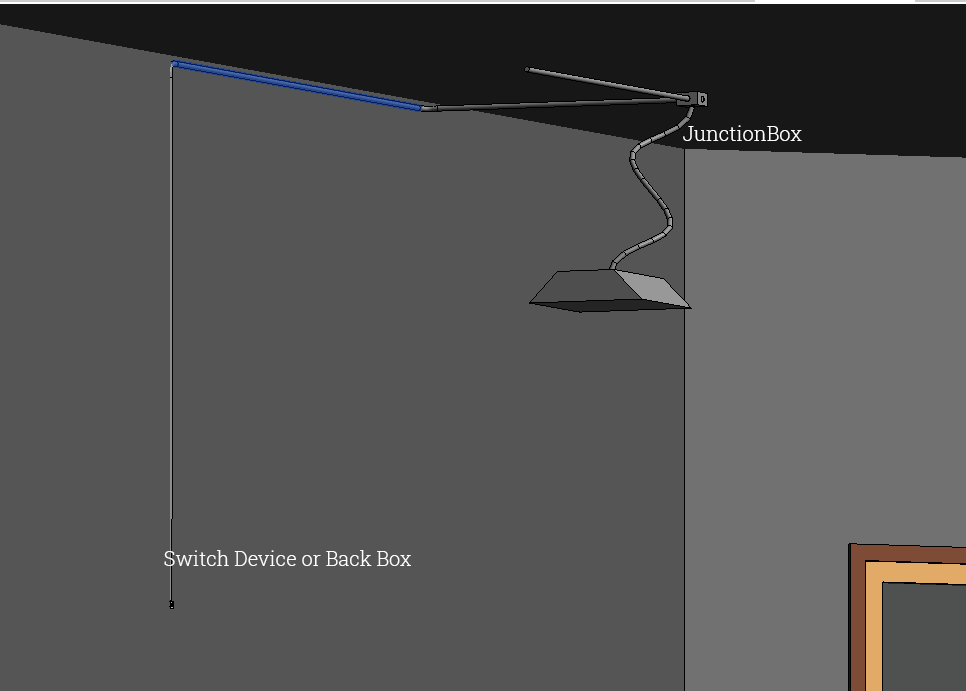

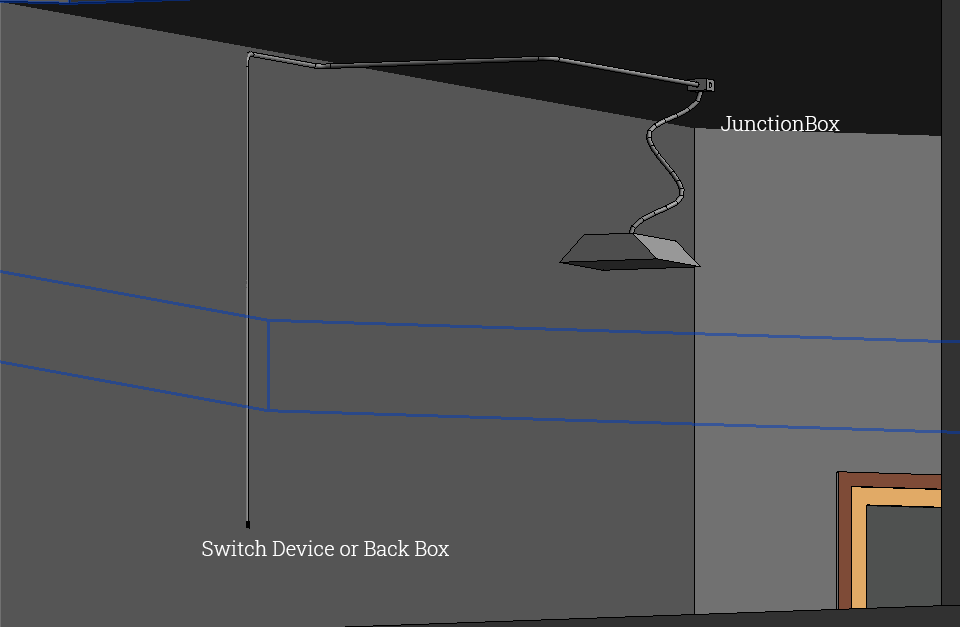

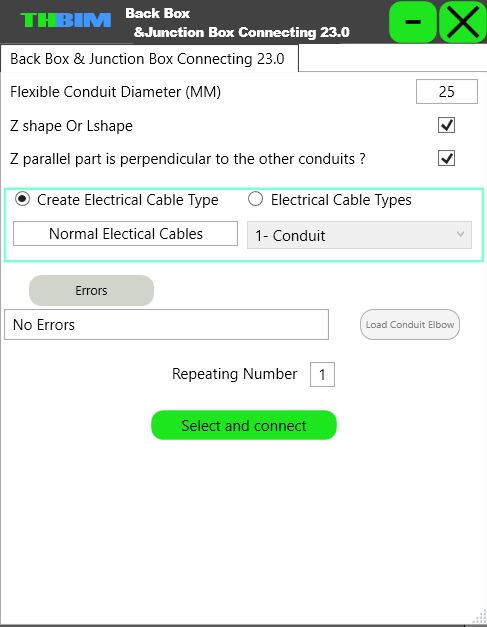

🧩 Connect Junction Boxes to Back Boxes

Automatically draw conduit paths between ceiling-mounted junction boxes and wall-mounted back boxes.

🅻 L-Mode: Two-Conduit Connection

Connect with two straight conduit segments forming an L-shape — ideal for simple layouts.

🆉 Z-Mode: Three-Conduit Connection

Use Z-shaped three-segment connections for flexible routing in complex spaces.

📐 Handles Height Differences

No matter the elevation difference between boxes, thBIM calculates and draws the right conduit path.

What is TH‑BIM Connect Junction Box and Back Box Add‑in?

Connect ceiling-mounted junction boxes to wall-mounted back boxes or switches.
Supports both L-mode (2 conduits) and Z-mode (3 conduits) connections.
Automatically detects conduit connectors on both boxes.
Handles height differences between ceiling and wall elements.
Saves time and improves accuracy in LOD 450 modeling.
Great for electrical coordination and shop drawing preparation.

Junction Box Connection Video

🅻 L-Mode Connection

Draw two conduits between junction and back box — quick and clean.

🆉 Z-Mode Connection

Three-segment conduits automatically routed between the boxes.

📐 Height Difference? No Problem

The add-in calculates and draws a realistic conduit path even across different elevations.

📤 Copy Families Above Other Families

Automatically place one family instance above another — perfect for junction boxes above lighting fixtures.

⚡ Instant Batch Copy

Select a group of host families and instantly duplicate a target family above each one.

📐 Precise Placement Control

Control the vertical offset and alignment — no more manual copying or repositioning.

What is TH‑BIM Copy Families Add‑in?

Copy a family instance above another — such as placing junction boxes above lighting fixtures.
Batch select host families and automate the copying process.
Control vertical placement using offset values for perfect alignment.
Ensure accurate coordination and eliminate repetitive manual work.
Save hours on repetitive placement tasks in large MEP models.

Copy Families Add-in (Video)

📋 Copy Family Above Another

Select your target family and automatically place another family directly above each instance.

📤 Copy One Family Above Another

Quickly copy junction boxes above selected lighting fixtures — all automatically.

⚡ Batch Placement Across Many Hosts

Select many lighting fixtures and place a junction box above each one in seconds.

🔢 Renumber Revit Elements Easily

Automatically assign serial numbers to selected Revit families with full customization.

🔠 Add Prefix or Suffix

Customize numbering to match naming standards with optional text before or after the number.

⬆️⬇️ Ascending or Descending

Choose the order that suits your workflow: count up or count down.

📁 Target Any Parameter

Save the results to any existing parameter — or generate a new one on the fly.

What is TH‑BIM Renumber Elements Add‑in?

Apply serial numbers to selected families.
Support for ascending or descending order.
Add prefix and/or suffix to numbers.
Store results in an existing or new parameter.
Essential for fire alarm, devices, or equipment layouts.
Perfect for LOD preparation and documentation control.

Renumber Elements Add-in (Video)

⬆️ Ascending Numbering

Number families from smallest to largest in seconds.

🔠 Prefix & Suffix

Add meaningful context to element numbering with customizable text.

🔥 Fire Alarm Workflow

Use case: numbering detectors in a fire alarm system quickly and accurately.

🔢 Assign Serial Numbers in Text Notes

Automatically create multiple text notes containing series numbers in one click.

✏️ Custom Note Structure

Each note can contain three parts — with the middle part being a dynamic series number.

⚙️ Flexible Numbering Options

Add a prefix or suffix to your numbers, and choose ascending or descending order.

What is TH‑BIM Assign Number in Text Note Add‑in?

Create multiple text notes automatically with structured series numbers.
Supports prefix, suffix, and custom part formatting.
Select ascending or descending numbering direction.
Ideal for tagging fire alarms, equipment, or shop drawing annotations.
Eliminates manual text note duplication and renumbering.

Assign Number in Text Note (Video)

🔢 Auto-Generate Text Notes

Quickly generate a series of text notes with structured numbering.

📝 Add Prefix or Suffix

Customize the number format with a label before or after the series value.

⬆️⬇️ Control the Order

Choose ascending or descending numbering based on project requirements.

🔌 Connect Electrical Equipment to Main Cable Tray

Create a clean cable tray path between any electrical equipment and your existing main tray with just 2 clicks.

⚡ Save Time

No need for manual routing.

🖱️ Two-Click Workflow

Click the equipment, click the tray — and the connection is created instantly.

What is TH‑BIM Cable Tray Between Equipment Add‑in?

Create cable tray connections from equipment to the main tray in just two clicks.
Automatically detects endpoints and places trays accordingly.
Perfect for linking DBs, panels, and major devices to the tray network.
Reduces coordination errors by ensuring proper connectivity.

Cable Tray Connection Add-in (Video)

🔌 Equipment to Tray in Seconds

Pick the equipment, then the tray — thBIM generates the cable tray path automatically.

⚡Just two Clicks

Two clicks only to do this lazy task.

🖱️ Just Two Clicks

Click the electrical equipment, then the main tray — the cable tray is created instantly.

🔌 Connect Junction Box to Fixture Automatically

Create flexible conduits between junction boxes and lighting fixtures in seconds.

🧱 Works in False Ceiling Conditions

Perfect for ceiling spaces where detailed modeling is essential for coordination.

⚙️ Smart Path Calculation

Automatically detects connectors and draws a clean, flexible conduit path.

What is TH‑BIM Junction Box and Fixture Connecting Add‑in?

Connects ceiling junction boxes to lighting fixtures automatically.
Draws flexible conduits that match project requirements for LOD 450.
Perfect for use in false ceiling spaces or complex coordination areas.
Smart detection of element heights and connector points.
Saves hours of manual routing and trial-and-error adjustments.

Junction Box & Fixture Connecting (Video)

🔌 Auto-Connect to Fixture

Create a flexible conduit from the junction box to the lighting fixture instantly.

🧱 Great for False Ceilings

Handles typical ceiling void layouts with smart conduit routing between levels.

📐 Achieve LOD 450

Speeds up the detailing process and ensures compliance with LOD 450 requirements.

📦 Move Elements in 3D Space

Move any element precisely along X, Y, or Z without needing to open sections or multiple views.

📐 No Need for Section Views

Adjust positions directly in 3D — save time compared to navigating views for each axis.

🧲 Snap to Logical Increments

Move by fixed distances or manually enter offsets for precise placement.

What is TH‑BIM Move Elements Add‑in?

Move elements freely in X, Y, and Z directions.
No need to create sections or plans to make spatial adjustments.
Save time on layout changes and coordination fixes in 3D.
Input exact distances for accurate element relocation.
Ideal for quick spatial corrections in dense MEP models.

Move Elements Add-in (Video)

📦 Move in All Directions

Adjust elements in X, Y, or Z direction without switching views.

🧭 Work Entirely in 3D

No need to open section or plan views — all movement handled directly in 3D space.

🛠️ Move by Value

Enter exact values to nudge elements accurately along any axis.

📊 Generate Cable Tray Sections Automatically

Create detailed cable tray section views based on your customizable settings.

⚙️ Fully Configurable

Set tray height, spacing between cables, number of spare spaces, and more.

🧾 Output to Drafting Views

Generate the section directly into a clean and organized drafting view.

What is TH‑BIM Generate Cable Tray Section Add‑in?

Create cable tray sections with cable lines automatically.
Control spare space, cable spacing, and tray height.
Customize cable count and positioning easily.
Outputs section in a clean drafting view for documentation.
Perfect for shop drawings and coordination packages.

Generate Cable Tray Section (Video)

📊 Full Section in One Click

Generate a cable tray section with cable lines, spacing, and spare automatically.

⚙️ Adjustable Parameters

Set height, number of cables, cable spacing, and spare areas as needed.

📐 Clean Drafting View Output

Your section is created in a Revit drafting view, ready to place on sheets.

📐 Clean Drafting View Output

Your section is created in a Revit drafting view, ready to place on sheets.

📐 Clean Drafting View Output

Your section is created in a Revit drafting view, ready to place on sheets.

🛠 Automatic Wall & Slab Openings

Create precise openings for conduits, pipes, cable trays, and ducts with a single click.

📏 Accurate to Element Size

Openings are generated exactly to the element’s dimensions, with optional clearance settings.

⚡ Instant Time Savings

Eliminate manual modeling — handle multiple openings in seconds instead of hours.

🏗 Maintain Model Accuracy

Openings are placed without altering MEP elements or structural geometry integrity.

🔄 Works Across Multiple Categories

Supports conduits, pipes, ducts, and cable trays in a single operation.

What is TH-BIM Wall & Slab Opening?

Automatically create openings in walls and slabs for conduits, pipes, ducts, and cable trays.
Precisely matches the size of each element with adjustable clearance.
Supports multiple elements at once for batch opening creation.
No manual cutting or sketching — openings are placed instantly.
Ideal for builder works coordination, shop drawings, and MEP–structure integration.
Preserves model accuracy without affecting slopes, fittings, or geometry.
Boosts productivity by reducing repetitive modeling tasks.

Wall & Slab Opening Video

👆Select MEP Elements

Pick conduits, pipes, ducts, or cable trays that intersect with walls or slabs.

⚡Generate Openings Instantly

Openings are cut automatically in the correct position and size.

📦Process Multiple Elements

Create all necessary openings for multiple selected elements at once.

📏 Perfect Alignment

Openings align perfectly with element centers, ensuring neat builder works.

📏 Express Families Dimensioning

Automatically create dimensions between Revit families in seconds.

🎯 Coordinate-Based Precision

Dimension families with respect to X, Y, or both coordinates — your choice.

⚡ Faster Documentation

Skip manual picking — let the tool generate clean, aligned dimensions instantly.

🛠 Flexible Control

Create one dimension line between two families or multiple dimensions at once.

What is TH-BIM Express Families Dimensioning?

Automatically place dimensions between families in Revit.
Choose to dimension in X, Y, or both coordinate directions.
Create a single dimension between two families or multiple dimensions for a whole selection.
Ideal for coordination, shop drawings, and rapid detailing.
Reduces repetitive clicking and manual alignment work.
Produces clean, consistent dimensioning that follows project standards.

Express Families Dimensioning Video

👆Select Families

Pick the families you want to dimension — no tedious manual selection.

🎯 Choose Orientation

Dimension along X, Y, or both — fully under your control.

⚡ Instant Dimensions

Generate precise, clean dimensions with one click.

📐 Advanced Dimensioning

Quickly apply aligned, angular, and spot dimensions with ease.
